Changeover Switches
Changeover Switches
Change Over Switches- In Sheet Steel Enclosure, Powder coated, Weather proof Conforms to IS:13947 (part 3) 1993, Off Load side handle operated designed for safe & reliable Industrial use for transfer of power from Electric Supply to captive source and vice versa. Available in current ratings of 16A to 32A in double pole at 240V and 16A to 100A in triple pole and four pole at rated voltage of 415V. Can also be used for reversal of ac motors.

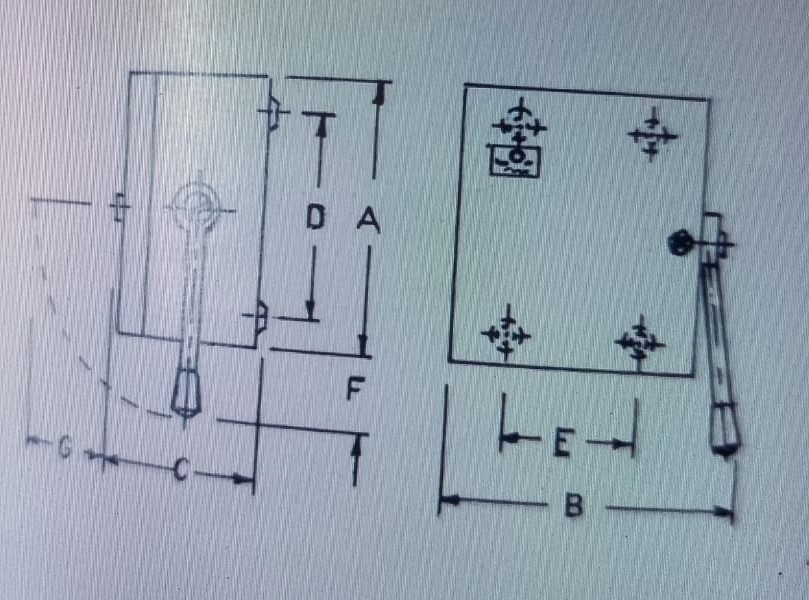

Principal Dimensions
| Amps | Volts | Cat. No. | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| 16A | 240V | DPC16 | 190 | 160 | 90 | 150 | 110 | 30 | 60 | 2.000 kg |
| 32A | 240V | DPC32 | 190 | 180 | 90 | 150 | 110 | 30 | 60 | 2.500 kg |
| 16A | 415V | FPC16 | 190 | 290 | 90 | 150 | 220 | 30 | 50 | 3.000 kg |
| 32A | 415V | FPC32 | 190 | 290 | 90 | 150 | 220 | 30 | 50 | 3.500 kg |
| 63A | 415V | FPC63 | 260 | 385 | 140 | 210 | 310 | 50 | 80 | 10.000 kg |
| 100A | 415V | FPC100 | 260 | 435 | 140 | 210 | 360 | 50 | 80 | 14.000 kg |
